TRUMAG HIGH STRENGTH MAGNETIC FILTRATION UNIT / MAGNETIC FILTRATION UNIT

Magnetic Filtration Unit | Oil Filtration Machine | Oil Filtration System

Filtration of oil in auto as well as industrial machinery are very essential to get best results, reliability and longevity. Cleaning lubricant is extremely important & lubrication practitioner are equipped with different options for filtering and controlling contamination, including disposable filters, cleanable filters, strainers and centrifugal separators.

While it’s extremely true to have conventional mechanical filters which can remove many particles in the same size & range as magnetic filters, the majority of filters are disposable and incur a price for every gram of particles removed.

Our Products

Applications:

How magnetic filter works? :

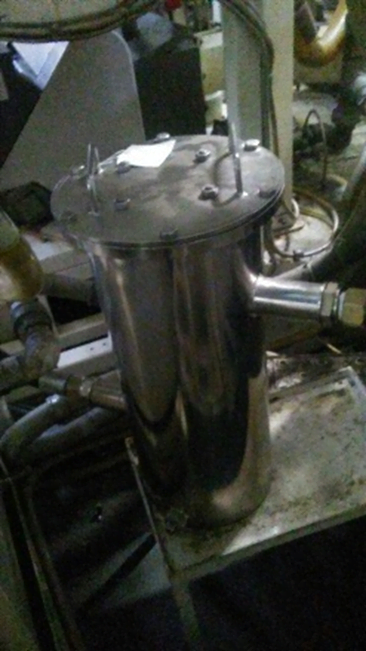

Fluid enters through the inlet and flows up through the primary filtration chamber, it then flows down through the secondary filtration chamber, fluid then passes through an optional mesh screen which removes non-magnetic debris. The patented magnetic circuit design ensures that the filter can never block even in high contamination applications. The magnetic cores can be removed easily by hand and cleaned with the tool supplied. As an option a spare magnetic cartridge can be supplied to ensure production continuity.

Magnetic filter :

Gearbox (includes final drive, differential) both forced-circulating & splash fed
Any machine with ferrous frictional surface but with no forced oil circulation & filtrations
Applications where different use of magnetic filters will substantially stretch the life of conventional old filters already in use
Applications where iron particles are known to be a high contributor to oil oxidations problem
Hydraulic systems, particularly those using electrohydraulic valves
In situations requiring better precision in recognizing abnormal wear particle generation (and wear particle type)

Magnetic filter for higher flow, higher Contamination applications:

Full stainless steel construction.
Non block design.
Patented design.
Easy installation.
High flow capability.
Operates at up to 20 bar.
Minimal pressure drop.
In-line connections.
Ideal for use in harsh chemical environments.

Benefits :

Reusable Technology : the value of removing a little tiny particle from the oil with magnetic technology is low compared to disposable filters.
Limited Flow Restriction : unlike conventional filters, most magnetic filters exhibit little to no increase in flow restriction (pressure drop) because it loads with particles.
Extended Life of Conventional Filters : when used in collaboration with old & conventional mechanical filters an increase in effective filter service life 2-3 times may be experienced.
Lower Risk of Oil Oxidation, Iron & steel particles can be easily known to promote all oil oxidation by their catalytic property. Premature oil oxidation can lead to acute varnish, high sludge & extreme corrosion. Magnetic filters usually have a +ive impact on oil service life, & over the time it reduces oil consumptions if it is changed on condition.
Enhanced Wear Particle Identification : particles removed from magnetic rods & magnetic filters are often in their pure state which can extremely enhance the accuracy of machine condition analysis.
Quick Wear & tear of Metal Inspections : Rods can be removed for several visual inspections (daily, weekly) without stopping any machine or removing the filter. They provide a dual service of contaminants removal & conditions monitoring (from the density of wear particles).

TRUMAG-MODEL NOS OF (1 INCH OD RODS) WITH LENGTH FLOW RATE HOLDING CAPACITY IN/OUT CONNECTION

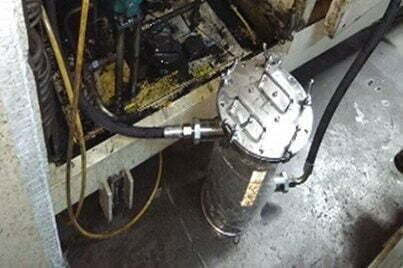

Installation :

Product Details :

Trumag Model	No of (1 inch of Rods ) with Length	Flow Rate	Holding Capacity	In / Out Connection
8 x 1	1 Nos – 8 Inch each	50 lpm	0.8 Kg	1 Inches
8 x 2	2 Nos – 8 Inch each	100 lpm	1.5 Kg	1 Inches
16 x 3	3 Nos – 16 Inch each	250 lpm	4.5 Kg	2 Inches
16 x 4	4 Nos – 16 Inch each	250 lpm	6.5 Kg	2 Inches

100% Guaranteed Clean Oil
