Purify Your Oil. Protect Your Investment.
Remove fine particulate contamination from hydraulic and lubrication oil with an efficient bypass filtration solution engineered for demanding industrial applications.
Table of Contents
Turn Contaminated Oil Into Cleaner Performance
Bypass Oil Filtration System provides continuous secondary filtration to control fine particles and maintain cleaner oil in hydraulic and lubrication systems.
Bypass Oil Filtration Unit | Oil Filtration Machine | Oil Filtration System
In modern industrial machinery, clean oil is essential for reliable hydraulic, lubrication and power-transmission performance. Hydraulic systems, injection molding machines, CNC machine tools, hydraulic presses, bearings, gearboxes and other critical equipment depend on oil to provide lubrication, power transfer and heat management
Over time, oil can become contaminated with fine particles, dirt, sludge, moisture, wear debris and other unwanted contaminants. These contaminants can circulate through the system and contribute to component wear, reduced performance and unplanned maintenance.
Bypass Oil Filtration Unit provides a dedicated method of continuously or periodically cleaning a small portion of the oil flow through a fine filtration circuit. Instead of filtering the entire main oil flow, a bypass filtration system diverts a controlled quantity of oil through a high-efficiency filter and returns the cleaned oil to the reservoir or lubrication circuit.
Destiny International manufactures and supplies industrial oil filtration solutions designed for hydraulic systems, lubrication systems, heavy machinery and demanding industrial applications. Its bypass filtration technology is designed for fine contamination control and can be configured for different oil types, equipment and operating conditions
What Is a Bypass Oil Filtration Unit?

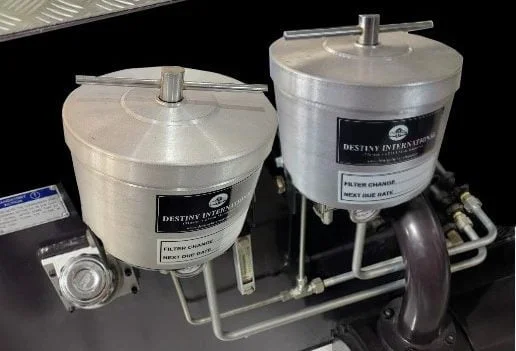

Destiny's Bypass Oil Filtration Unit is an oil-cleaning system installed in a separate bypass loop rather than directly in the primary oil-flow path.
The system continuously takes a relatively small quantity of oil from the main reservoir or lubrication circuit, passes it through a fine filtration element and returns the cleaned oil back into the system.
The primary objective is to improve oil cleanliness by continuously removing contaminants that may not be effectively controlled by the equipment's standard full-flow filter.
Destiny International's current product information describes its bypass system as passing a smaller oil flow through a dense filter cartridge, with the company's configuration designed for fine particle and water contamination control.
The exact filtration performance depends on the filter element, oil characteristics, operating temperature, flow rate and contamination conditions. Therefore, the filtration rating and system configuration should always be selected according to the application rather than treating one filtration specification as suitable for every machine.
How Does a Bypass Oil Filtration System Work?
The working principle of a bypass oil filtration system is straightforward.
Instead of forcing all system oil through a very fine filter, a controlled portion of the oil is continuously diverted through the bypass circuit.
Typical Process
Oil Reservoir → Bypass Pump/Flow → Fine Filter → Clean Oil Return → Oil Reservoir
As the process continues, increasingly more of the total oil volume passes through the fine filtration circuit.
- Contaminated Oil Enters the Bypass Circuit
Oil containing suspended contaminants is drawn from the hydraulic or lubrication system. - Controlled Oil Flow
Only a portion of the total oil flow is directed through the bypass filtration unit.
This allows fine filtration without creating excessive pressure drop in the primary hydraulic or lubrication circuit. - Fine Filtration
The oil passes through a high-efficiency filtration element designed to capture fine contaminants.
Depending on the selected filter media and application, the system can be configured for very fine particle removal. - Optional Moisture Control
Where required, suitable filtration or dehydration technology can be incorporated to address water or moisture contamination. - Clean Oil Returns to the System
After filtration, the cleaned oil is returned to the reservoir or lubrication circuit.
The process repeats continuously or according to the selected operating schedule.
Why Is Bypass Oil Filtration Important?
Industrial oil contamination can come from many sources.
Common contamination sources include:
- Dust and airborne particles
- Wear particles
- Metal debris
- Dirt entering through breathers
- Water and condensation
- Improper oil handling
- Seal deterioration
- Internal component wear
- Oil degradation
- Sludge formation
- Varnish-related deposits
Even when an industrial machine has a standard oil filter, extremely fine particles can remain suspended in the lubricant.
A bypass oil filtration machine provides an additional filtration stage dedicated to maintaining oil cleanliness.
Bypass Oil Filtration Machine for Hydraulic Systems
Hydraulic systems depend on clean oil for power transmission and lubrication.
Hydraulic pumps, valves, cylinders and other components can contain small internal clearances. Contaminated oil can contribute to wear and malfunction, particularly when particle contamination is not adequately controlled.
A hydraulic oil filtration machine installed in bypass configuration can continuously process a portion of the hydraulic oil.
Applications can include:
- Hydraulic presses
- Injection molding machines
- Die-casting machines
- Steel mill hydraulic systems
- Construction machinery
- Mining equipment
- Earth-moving machinery
- Hydraulic power packs
- Industrial hydraulic systems
Destiny International specifically lists hydraulic systems with pumps, servo valves and cylinders, hydraulic presses, casting machines and molding machines among applications suited to its bypass filtration technology.
Bypass Oil Filtration for Injection Molding Machines
Injection molding machines depend on hydraulic systems for various machine movements and pressure-control functions
Hydraulic oil can become contaminated through normal operation, environmental exposure and component wear.
Fine particles circulating through the hydraulic system can contribute to wear of pumps and precision hydraulic components.
A bypass oil filtration system for injection molding machines provides an additional method of maintaining oil cleanliness.
Destiny International identifies plastics injection molding machines as one of the applications for its bypass oil filtration units.
The system can be configured around the machine’s oil volume, oil type, operating temperature, contamination level and required filtration performance.
Bypass Oil Filtration for CNC Machines
CNC machine tools use lubrication and hydraulic systems that require effective contamination management.
Applications can include:
- CNC machining centers
- CNC turning machines
- Grinding machines
- Hydraulic machine tools
- Metal-cutting equipment
- Automated machining systems
A bypass filtration system can provide additional fine filtration without necessarily modifying the primary hydraulic circuit.
For facilities operating multiple CNC machines, maintaining oil cleanliness can become an important part of preventive maintenance.
Destiny International lists steel plants and CNC machine tools among the applications for its bypass oil filtration solution.
Bypass Oil Filtration for Hydraulic Presses
Hydraulic presses operate under high pressure and depend on reliable hydraulic components.
Contamination in hydraulic oil can affect:
- Pumps
- Valves
- Cylinders
- Servo systems
- Proportional valves
- Hydraulic actuator
A hydraulic oil filtration system operating in bypass configuration can continuously clean a portion of the oil.
This can complement the machine’s existing filtration system and provide additional contamination control.
Destiny International lists hydraulic presses, hot and cold steel mills and other heavy industrial hydraulic applications among the applications for its filtration solutions.
Fine Filtration and Particle Contamination Control
One of the primary advantages of bypass filtration is the ability to use a fine filtration element on a controlled portion of the oil flow.
Destiny International states that its bypass filtration system can be configured for particle removal down to fine levels, including a stated capability of up to 1 micron in the company’s product information.
However, filtration performance should always be evaluated using the actual filter specification, including:
- Nominal or absolute rating
- Beta ratio where applicable
- Filter media
- Flow rate
- Oil viscosity
- Temperature
- Differential pressure
- Contaminant loading
A filter’s nominal micron rating and absolute filtration performance are not interchangeable terms. Industrial buyers should therefore review technical specifications before selecting a filter for a critical hydraulic system.
Benefits of a Bypass Oil Filtration Unit
A properly designed bypass oil filtration system can provide several operational benefits.
1. Fine Contamination Control
The system can be designed to capture fine particles that remain suspended in the oil.
2. Continuous Oil Cleaning
Because the system operates independently from the primary flow circuit, it can clean oil continuously or periodically.
3. Improved Oil Cleanliness
Removing contaminants helps maintain cleaner oil and supports hydraulic and lubrication-system maintenance.
4. Reduced Contamination Circulation
Continuous removal of contaminants can reduce the concentration of suspended particles in the oil over time.
5. Support for Component Protection
Cleaner oil can help reduce contamination-related wear in pumps, valves, bearings and other components.
6. Reduced Maintenance Requirements
Effective contamination control can support a preventive maintenance program and potentially reduce contamination-related maintenance events.
7. Increased Filtration Capacity
A bypass system adds filtration capacity without requiring the entire main oil flow to pass through the fine filter.
8. Flexible Installation
Bypass filtration can be installed as an auxiliary circuit on suitable hydraulic and lubrication systems.
9. Suitable for Multiple Industrial Applications
The technology can be adapted for hydraulic oil, lubricating oil and other compatible industrial fluids.
Regular sump cleaning, combined with proper coolant monitoring, helps maintain a more effective fluid-management process.
Bypass Oil Filtration for Lubrication Systems
Bypass filtration is not limited to hydraulic oil.
It can also be used for suitable lubrication applications.
Potential applications include:
- Bearing lubrication
- Gear lubrication
- Industrial lubrication systems
- Power transmission systems
- Turbine-related applications
- Industrial machinery lubrication
- Engine lubrication applications
Destiny International identifies bearing lubrication systems, power transmission plants and power-generation applications among the areas where its filtration solutions can be used.
The compatibility of the filter media, viscosity and filtration system should always be verified for the specific lubricant.
Bypass Oil Filtration for Steel Plants
Steel plants operate large hydraulic and lubrication systems under demanding conditions.
Heavy machinery may operate continuously under high temperatures, high loads and challenging environmental conditions.
Potential oil contamination sources include:
- Metal particles
- Dust
- Moisture
- Wear debris
- External contamination
- Oil degradation products
bypass oil filtration system for steel plants can provide additional oil-cleaning capacity for suitable hydraulic and lubrication circuits.
Features of Destiny International Bypass Oil Filtration Unit
Destiny International’s LVDH systems can be configured for industrial oil dehydration and filtration requirements.
- Continuous and quick oil filtration
- Fine contamination control
- Dedicated filtration
- Automatic operation
- Compact filtration configuration
- Filter-element-based contamination removal
- Application-specific sizing
- Industrial mounting arrangement
Actual performance depends on oil type, viscosity, initial water concentration, temperature, flow rate, machine configuration and operating conditions.
Technical Specifications of Coolant Sump Cleaner
Following table is based on the product details available in the referenced listing. Confirm the final model-specific specifications with Destiny International.
| Parameter | Specification |
|---|---|
| Product Name | Coolant Sump Cleaner |
| Product Category | Coolant Filtration System / Sump Cleaning Machine |
| Model / Series | TRU SUMP CLEANER |
| Application | Machine Coolant Sump Cleaning and Filtration |
| Capacity | 450 Litres |
| Voltage | 280V |
| Phase | Single Phase |
| Frequency | 50 Hz |
| Power Source | Electric |
| Body Material | Mild Steel |
| Cleaning Method | Vacuum-Assisted Suction and Filtration |
| Primary Function | Collection, filtration and return of suitable machine coolant |
| Filtration Function | Separation of solid contaminants from collected coolant |
| Mobility | Portable Configuration |
| Application Type | Industrial Coolant Maintenance |
| Country of Origin | India |
| Manufacturer | Destiny International |
Why Choose Destiny International for Bypass Oil Filtration?
Destiny International focuses on industrial oil filtration, contamination control and lubricant-management solutions.
The company’s portfolio includes:
- Bypass Oil Filtration Units
- Hydraulic Oil Filtration Machines
- Portable Oil Filtration Machines
- Hydraulic Oil Cleaning Systems
- Low Vacuum Dehydration Systems
- Electrostatic Liquid Cleaners
- Oil Skimmers
- Oil Analysis Equipment
- Filter Cartridges
- Oil Transfer Units
- Magnetic Filtration Units
Even when an industrial machine has a standard oil filter, extremely fine particles can remain suspended in the lubricant.
A bypass oil filtration machine provides an additional filtration stage dedicated to maintaining oil cleanliness.
Frequently Asked Questions
Ques 1 .What is a bypass oil filtration unit?
A bypass oil filtration unit is a secondary oil filtration system that diverts a controlled portion of oil through a fine filter before returning the cleaned oil to the main reservoir or lubrication circuit.
Ques 2 .What is the difference between bypass and full-flow filtration?
Full-flow filtration processes the primary oil flow through the main filter, while bypass filtration processes only a smaller portion of the oil through a dedicated fine filter.
Ques 3.What does a bypass oil filtration machine remove?
Depending on the filter media and system configuration, a bypass filtration machine can remove fine solid particles, dirt, wear debris and other particulate contaminants. Additional technologies may be required for significant water or varnish contamination.
Ques 4.Can bypass filtration be used for hydraulic oil?
Yes. Bypass filtration is widely applicable to suitable hydraulic systems and can provide additional fine contamination control.
Ques 5 . Can the system be used for injection molding machines?
Yes. Destiny International specifically lists plastics injection molding machines among the applications for its bypass oil filtration system. Destiny International
Ques 6. Can bypass filtration remove water from hydraulic oil?
The answer depends on the system configuration and type of water contamination. A conventional particulate filter should not automatically be considered a complete dehydration system. For significant moisture contamination, a dedicated dehydration technology may be more appropriate.
Ques 7.How fine can the filtration be?
Destiny International’s current product information states filtration capability down to 1 micron for its listed bypass system. Actual performance depends on the selected filter element, oil conditions and operating parameters. Destiny International
Ques 8 .Does bypass filtration extend oil life?
Effective contamination control can help maintain oil cleanliness and may support longer oil service intervals where the lubricant remains chemically suitable. Oil analysis should be used to determine actual oil condition.
Ques 9 .Is bypass filtration suitable for CNC machines?
Yes. Destiny International lists CNC machine tools among the applications for its bypass oil filtration units. Destiny International
Ques 10 .How often should the bypass filter element be replaced?
Replacement frequency depends on contamination loading, operating hours, oil condition and differential pressure. The filter should generally be replaced according to the manufacturer’s recommended procedure and actual operating conditions.
Ques 11 .Can one bypass filtration system be used for different oils?
Only where the system, filter media and wetted components are compatible with the different fluids. Cross-contamination should also be prevented.
Keep Your Coolant Cleaner. Keep Your Operations Moving.
Reduce manual cleaning effort, recover usable coolant, and manage sump contamination more efficiently with Destiny International’s industrial Coolant Sump Cleaner.
