Case Study - Hydraulic Depth Filters

FILTERS that use a porous medium and catch particles using throughout the medium and not just the surface or layer. Medium can be fibrous cellulose, polypropylene along with base paper or flat filter cloth. It normally will have an inner core an outer core, in some case, a shoot to encase the media.
There is normally a base paper or filter cloth to act as a bed to flow of liquid through the media.
Filter extraction hooks /ribbon/or eyelet help removal of filter after it has choked or used.

Hydraulic Depth Filters

All Types & Models

200he
Filtroil 200HE
Filtroil 200HE
SDC 1888
FILTER CARTRIDGES

Depth Filters

  • CELLULOSE PAPER DEPTH FILTERS
  • POLYPROPYLENE DEPTH FILTERS
  • CELLULOSE PAPER DEPTH FILTERS

Developed to increase oil change intervals half a decade back-the method is used worldwide for ultrafine cleaning of machine oils.
Hydraulic oil cleaning is blessed with usage of depth filtration, keeping machines well oiled and never prone to failures.
Long slender fiber pulp are used for making filter paper used for depth filters. Long fibers help absorb moisture, and the capillary action of the fibers help retain moisture in media. The round coil similar to a paper roll from a depth and various level of compression on outer core enable multi layer filtration assisted by base paper, skirting or other arrangement as per manufacturer designs.

Table for clearance Between Filter Condition & Preventives Indications​

FILTER CONDITION

PREVENTIVES/INDICATIONS

DUST DEBRIS AND VISIBLE CONTAMINANTS

NORMAL OPERATING AND OIL CONDITION.

CHECK TAN <1

LARGE QUANTITY OF CONTAMINANTS ON FILTER SURFACE.

INSPECT MACHINE AT THE EARLIEST, WEARING /ERODING OF MACHINE INTERNAL EXPECTED.

CRACKS ON FILTER LAYERS AND SPONGY AND SOFT

INDICATION OF MOISTURE OR HEAT EXCHANGER OR ACCIDENTAL INGRESS OF WATER.HIGH ALERT REQUIRE IMMEDIATE ATTENTION AND SOLUTION.

FILTER IS HARD WITH VISIBLE DIRT AND CRACKS.

FILTER REPLACEMENT REQUIRED, REACHED SATURATION.

SHRINKAGE OF FILTER

CHECK FOR HIGH PRESSURE EXPOSURE TO FILTER

VISIBLE PRESENCE OF METAL

GO FOR OIL ANALYSIS INTERNAL COMPONENT WEAR EXPECTED

FILTER APPEARS CLEAN

CHECK IF CHECK VALVE IS MALFUNCTIONING, PREVENTING OIL INLET TO FILTER.

The amount of surface area directly correlates to the solids loading capability and related pressure drop. Depth Filtration refers to a thicker media or multiple layers of media, forming a torturous path to retain particles.

hydraulic cartridge sdc 1888

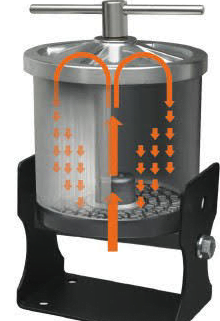

FLOW DIAGRAM OF SURFACE FILTER VS DEPTH FILTER

SDC1888

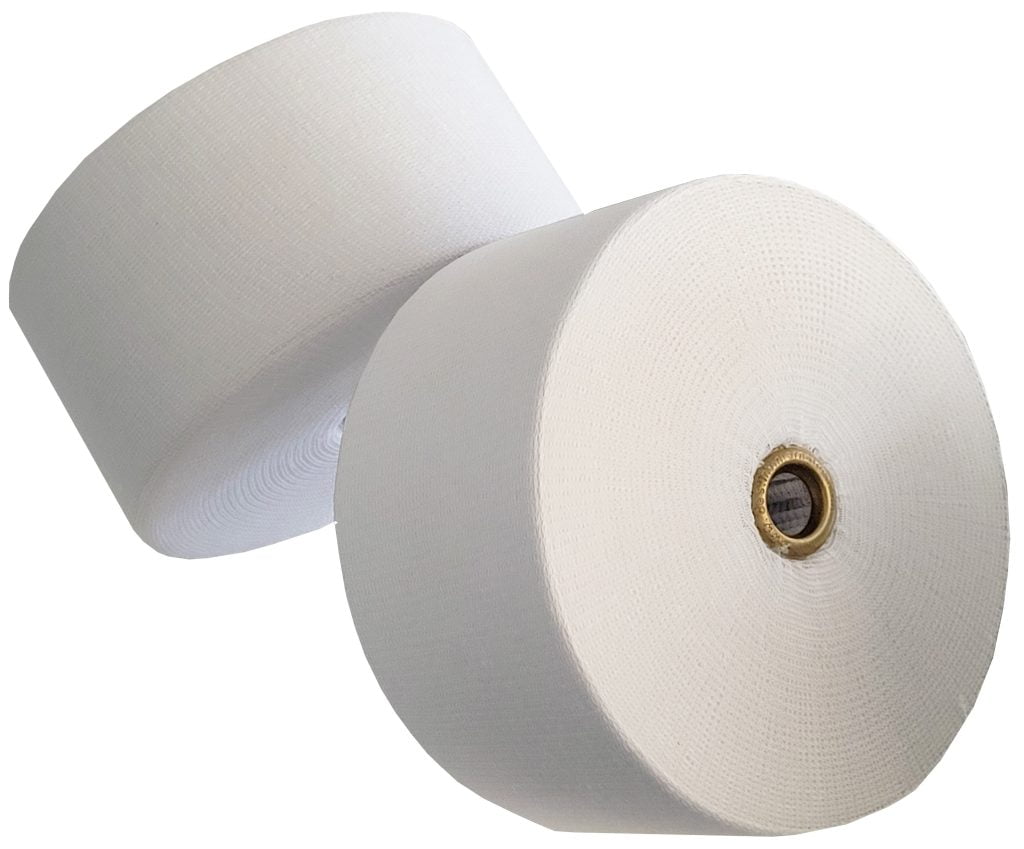

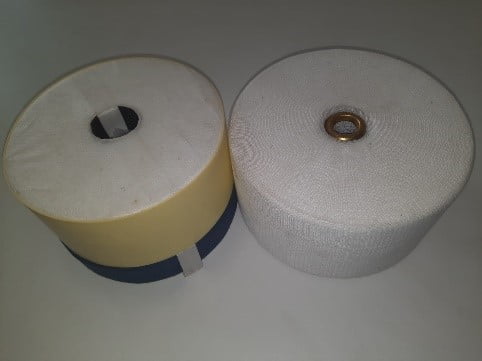

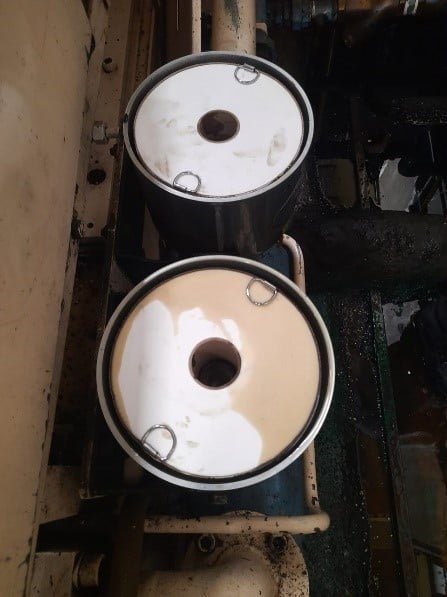

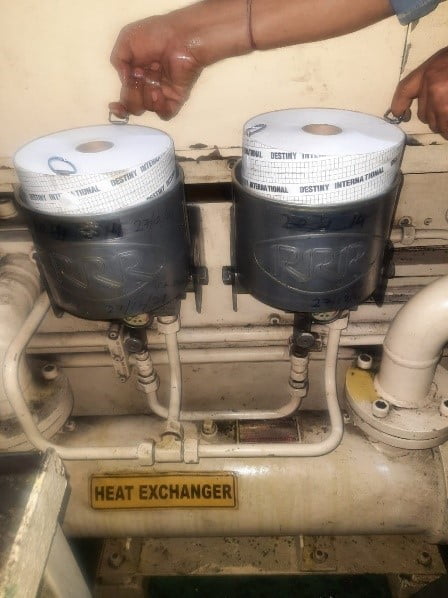

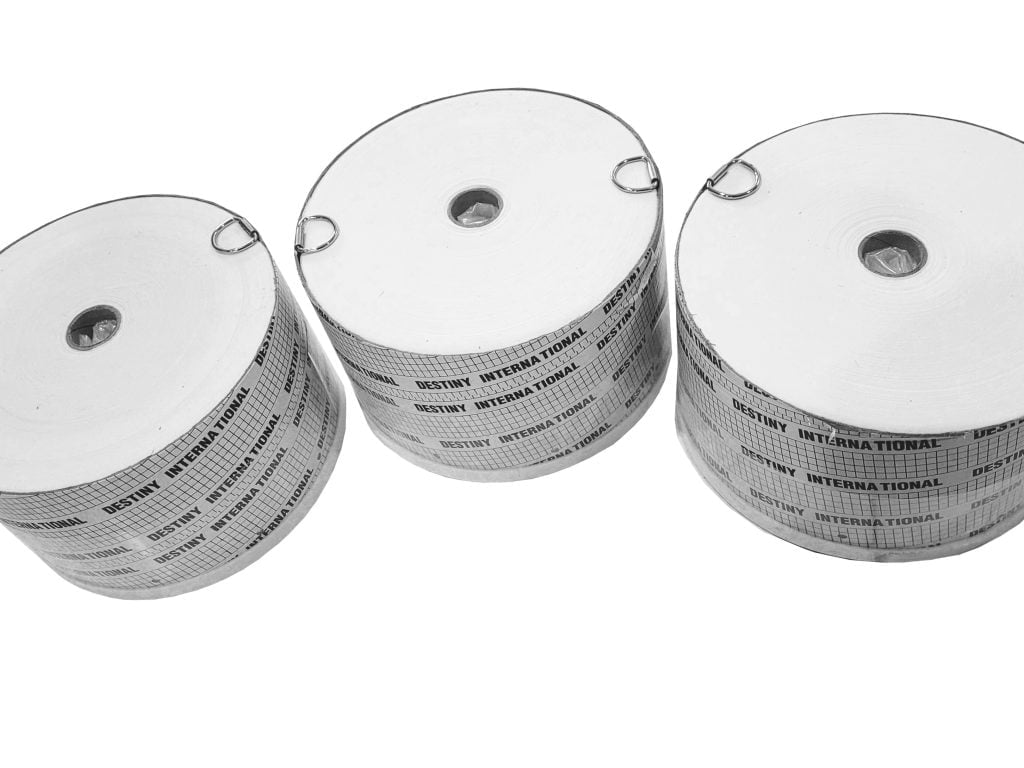

Designs Photos Of Depth Filters Used In Industries Housing With Replacement Filters

cartridge sdc 1888
filter sdc 1888
Water glycol filter sdpc 2088
ELC25 Element
ELC50 element

FILTER CARTRIDGE

Hydraulic Depth Filters
FILTER CARTRIDGE

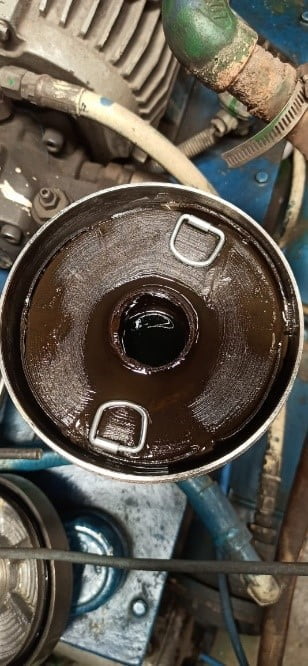

FILTER CARTRIDGE INSTERTING
hydraulic Oil dehydration services

DEPTH FILTER ELEMENT TYPE -3

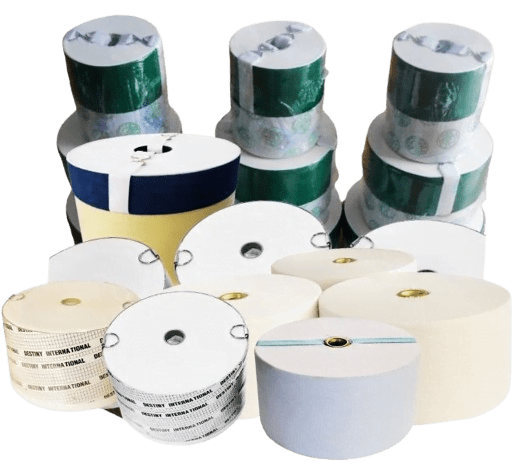

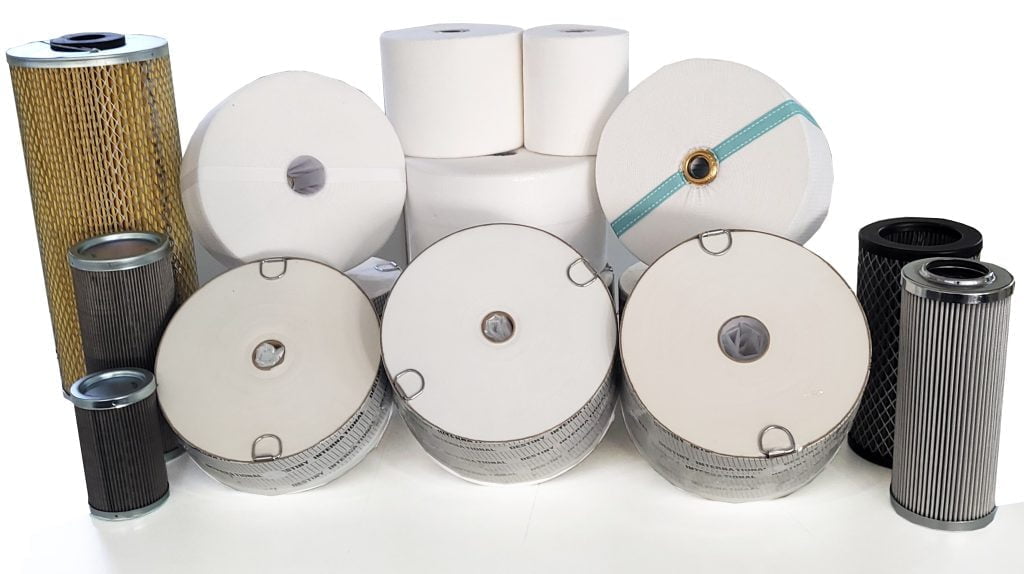

FILTER ELEMENTS

FILTER ELEMENT

FILTER ELEMENTS

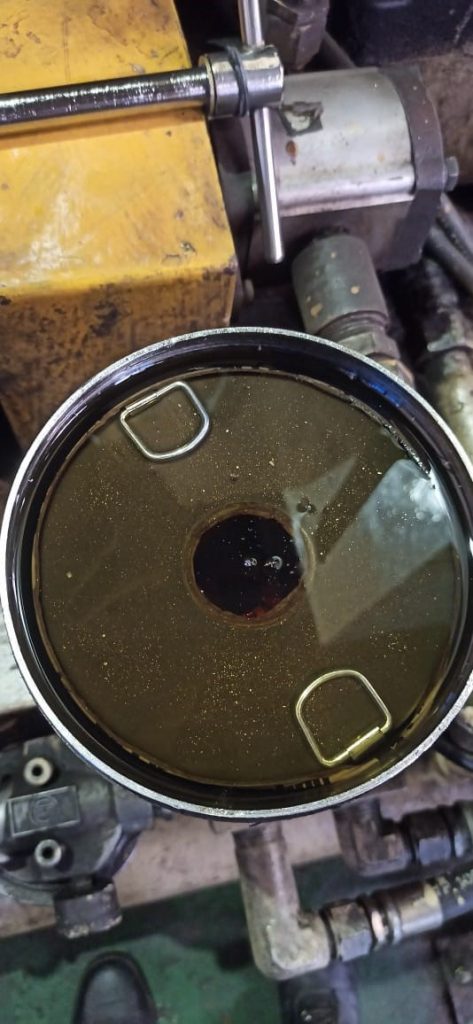

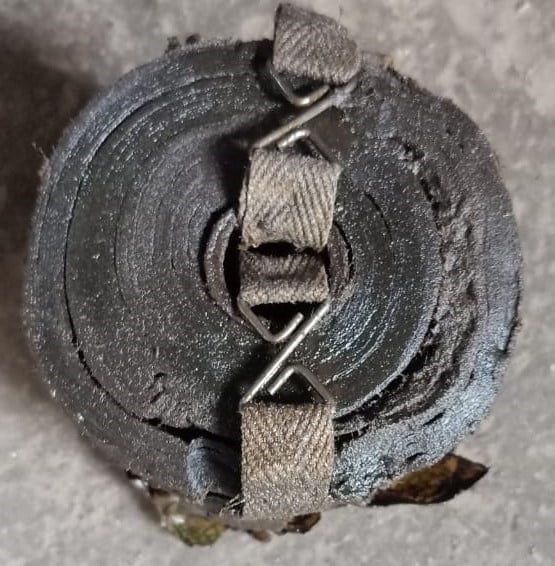

EVIDENCE OF DELAYED FILTER CHANGES

EVIDNECE OF DELAYED FILTER CHANGES (2)

EVIDENCE OF DELAYED FILTER CHANGES

EVIDNECE OF DELAYED FILTER CHANGES (3)

EVIDENCE OF DELAYED FILTER CHANGES

SUPER DUTY FILTER CARTRIDGE

SUPER DUTY FILTER CARTRIDGE

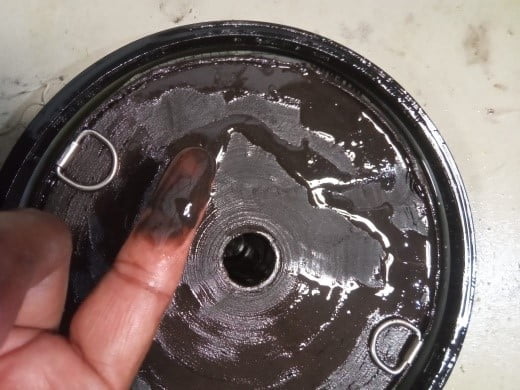

EVIDENCE OF METAL WEAR IN MACHINE
EVIDENCE OF METAL WEAR IN MACHINE
CHANGE YOUR FILTER ATLEAST WHEN 80% SATURATED OR QUATERLY OR EARLIER AS PER APPLICATION
CHANGE YOUR FILTER ATLEAST WHEN 80% SATURATED OR

NOTE : CHANGE YOUR FILTER ATLEAST WHEN 80% SATURATED OR QUARTERLY OR EARLIER AS PER APPLICATION

B) FILTER TYPE -2 POLYPROPYLENE DEPTH FILTERS

B)POLYPROPYLENE DEPTH FILTERS

FACTORS TO DETERMINE PERFORMANCE OF DEPTH FILTERS

Beta ratioYes

Efficiency

Yes

Dirt holding capacity

Yes

Moisture absorbing capacity

Yes

Micron rating

Yes
DimensionsYes

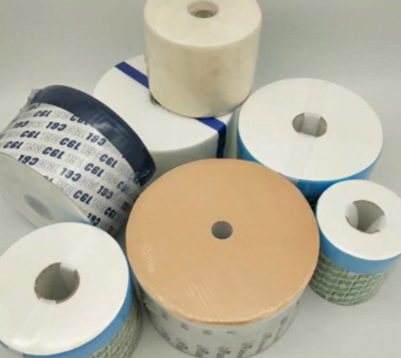

Some model of cellulose depth filters manufactured around the world:

  • M-Series, E- Series, E-Series and more…
  • A-Filters Inserts, B- Filters Inserts and more…
  • SDC1888, Water glycol filter SDPC 2088, cartridge sdc 1888 depth filters and more…
  • Destiny International – India, 200HE, 100 Series, 50 Series , 30 Series and equivalents
  • SDU-H350BM2, HDU-H300, SDU-H350RK , 2S-350-C4 , 4S-350-C8 , 6S-350-C12 , SDU-H8 , HDU-H8 , LDU-H8 , CFU-10 , CFU-10-PG , SDU-M8 , HDU-M8 , LDU-M8 , HDU-H8FL , HDU-H300FL2 , SDU-H8FL , SDU-H350BM2-FL , SDU-H8UW-S , SDU-H350UW-S

CGL Filter , CGL Filter ME30,CGL Filter ME32,CGL Filter ME50,CGL Filter ME100 Triple R Filter Yupao Filter ,YUPAO BYPASS OIL FILTER BU 30 Bypass Oil Filter Filtroil BU 200HE , filtroil 200he, Hydraulic Filter ElementM-Series, E- Series, E-Series and more...
